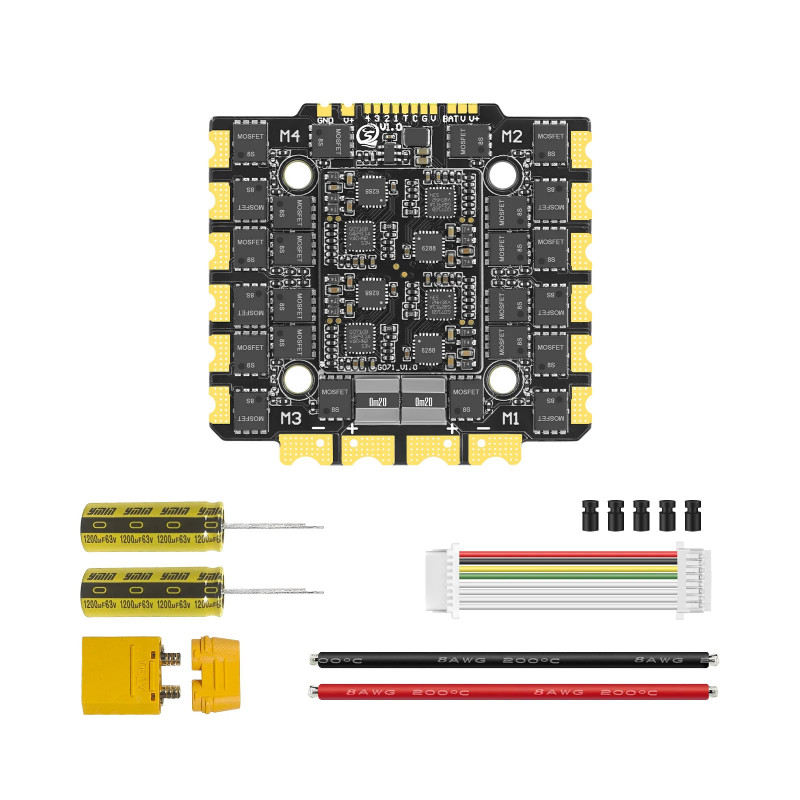

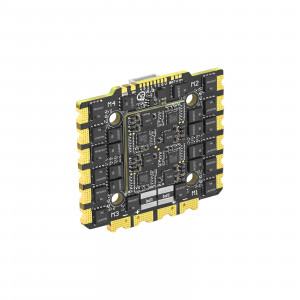

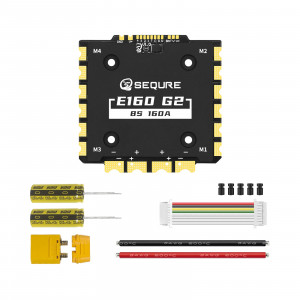

SEQURE E130/E160 G2 4-8S/4-12S 130A/160A 4IN1 ESC

Product Description:

(1) It uses the STM32G071 32-bit high-performance processor and supports the AM32|BLHEli_32 firmware.

(2) Wide input voltage range of 4–12S. The E130 G2 supports a continuous current of 130A (peak 220A) per channel, while the E160 G2 supports a continuous current of 160A (peak 280A) per channel.

(3) Features low-resistance, high-power MOSFET for ultra-high efficiency conversion, reducing power loss and extending flight time.

(4) The power supply features a dual-pad design with parallel battery configuration, making soldering easier and providing greater current-carrying capacity.

(5) Features high-quality, multi-layer PCBs with ultra-thick copper layers and an on-board copper bar design to increase current-carrying capacity and enhance heat dissipation. No fear of load pressure.

(6) Precise switching intervals and superior circuit design eliminate desynchronization issues. This accelerates the ESC’s response time, ensuring smooth control and a refined hand feeling.

(7) Supports real-time data transmission for multiple parameters: Equipped with a built-in ammeter, it supports telemetry transmission and provides real-time updates on motor speed, temperature, current, and other data.

(8) When powered on, the ESC automatically detects the throttle signal and supports all D-Shot signals, as well as PWM, One-Shot, and Multi-Shot signal protocols.

(9) A visual programming and tuning tool that supports settings such as motor timing, throttle calibration, current detection, motor rotation direction, and telemetry signals.

(10) Designed with a 30.5 x 30.5 mm mounting hole pattern, it is compatible with a wide range of racks, making installation a breeze.
