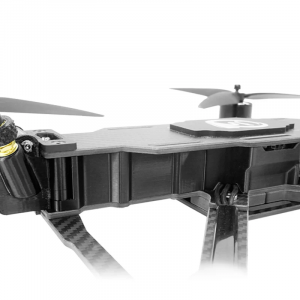

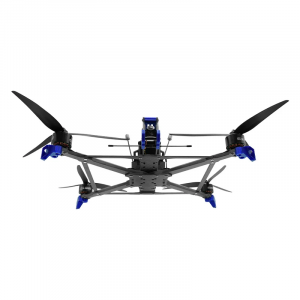

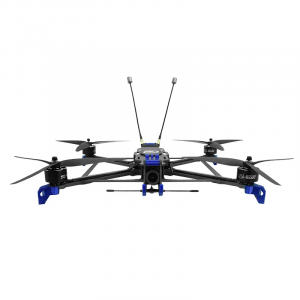

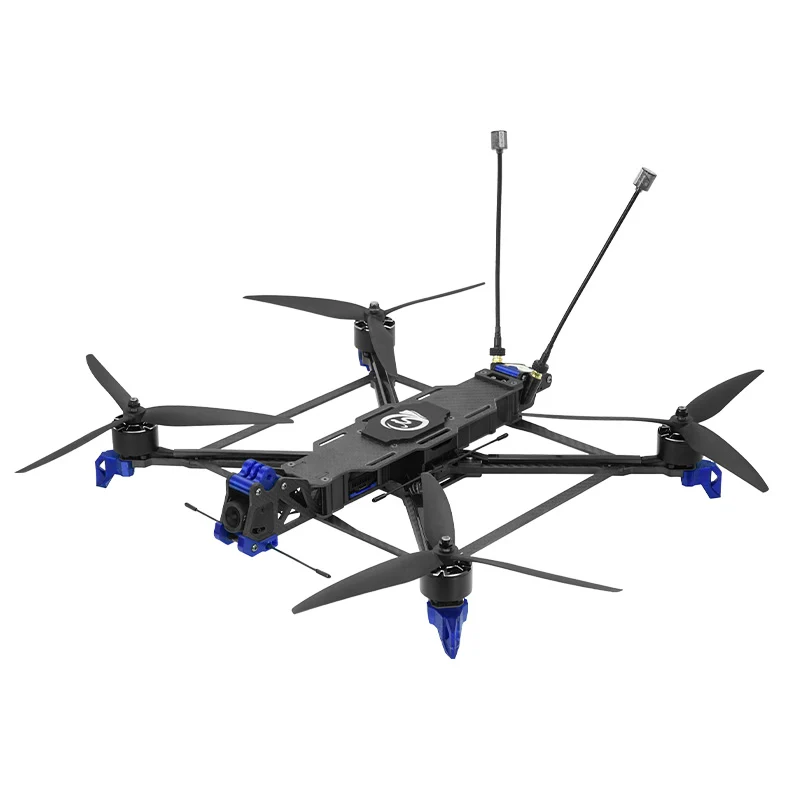

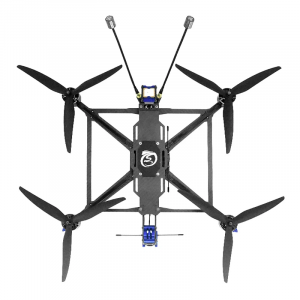

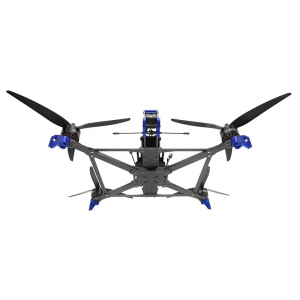

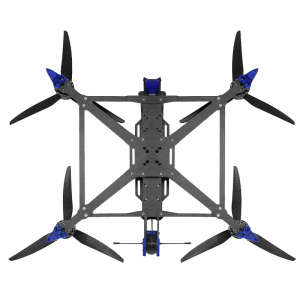

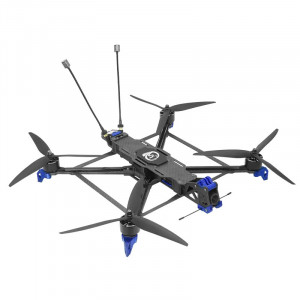

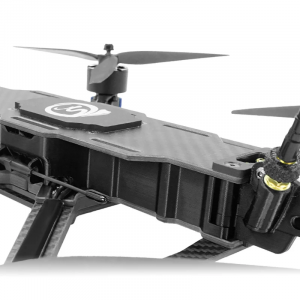

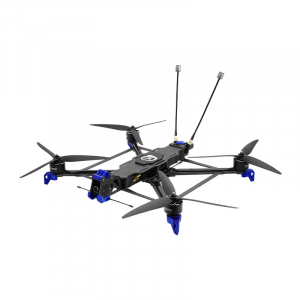

SEQURE SQFPV Flyson10 Long Endurance

The main controller uses an STM32H743, FC firmware Betaflight (factory default), supports INAV. The ESC employs a 32-bit MCU, with a high-performance hardware configuration of 70A 4IN1, ensuring continuous and stable operation.

 Paired with a high-performance FC, it supports 8S 3115 680KV or 6S 3115 900KV high-power brushless motors. Utilizing 10-inch propellers achieves optimal long-range flight efficiency.

 Equipped 7mm thick arms and a wide X design that reduces low-frequency noise and prevents resonance, providing 3 sets of battery strap positions to accommodate various battery sizes.

 The mid-plate flight controller's fully enclosed design protects the core components from interference.

 Features true diversity dual antennas receiver + omnidirectional signal reception.

 Equipped with 18cm video transmission dual antennas, maximizing long-range flight distance.

 Achieves a flight endurance time of up to 50 minutes for efficient long-distance travel.

 Equipped with a fixed XT90 power connector for easier power-up.

 Large-area GPS antenna for faster satellite acquisition.

 Supports DJI O4 AIR UNIT Pro for an HD flight experience.

 Rear-mounted TYPE-C programming port for convenient parameter adjustment.

Receiver: ELRS 2.4G Dual

Firmware: AM32

Product Name Flyson10

Rack structure Wide X-Link

Wheelbase 430mm

Arm thickness 7mm

Motor 6S 3115 900KV / 8S 3115 680KV

Propeller Gemfan 1050

Main Controller STM32H743

Gyroscope ICM-42688P

ESC 32-bit 70A 4IN1

OSD Chip AT7456E

Black Box 16MB

Working Voltage 4-8S(14V-35V)

Receiver PNP, ELRS 2.4G DUAL, ELRS 915M DUAL

Image Transmission DJI O4 AIR UNIT PRO, Simulation

Antenna Of Image Transmission 5.8G circular polarized antenna, LHCP 18cm * 2

FC Firmware Betaflight (default), supports INAV

GPS M10-25Q

Buzzer Yes

Recommend Battery 6S LiPo/LiHV 5000-16000mah / 8S  LiPo/LiHV 5000-16000mah

Video Recording (DJI O4 Pro) Supports up to 4K 120 frames

Parameter Adjustment Port Rear TYPE-C parameter tuning

Battery Interface XT90 fixed type

Weight (excluding battery) 1215g
